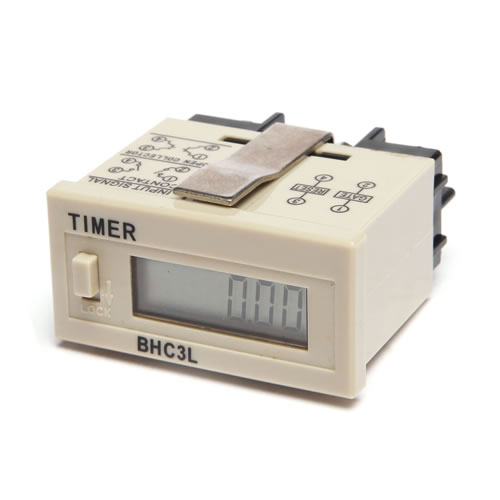

This product possess power by itself, small volume, high precision of cumulative time,
is especially suitable for high science technology domains and high-precision medical equipment
sides.

■ DIN48×24mmStandard front-panel dimension
■ Power by itself inner, not connecting outer
■ High precision of cumulative time
■ 6 sets of LCD, display big and clear-cut
■ Front-panel reset with lock, to prevent operating mistaken
■ The longest cumulative time is 9999day
■ This product has not mechanical wear and tear, has long life

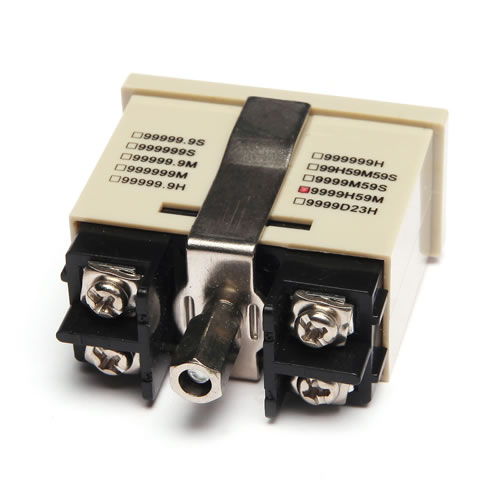

■ Range of cumulative time:99999.9Hour 9999.99Hour 99Hour59Pm59Seconds
■ 9999Days23Hour999999Days23Hour

Technical parameter

■ Power: inner power
■ Battery life:≥6year
■ Height of display-word:6.7mm
■ time error: ≤0.02%
■ The Max resistance of connecting with contactor:≤10kΩ
■ The Min resistance of breaking with contactor:≥500kΩ

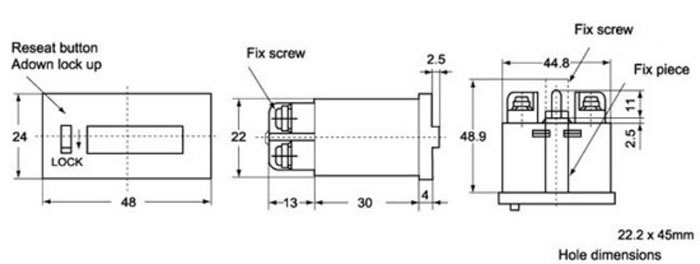

Outline dimensions
